activity中传递解析

当我们手指点击手机屏幕的时候，首先会触发activty的dispatchTouchEvent，源码如下：

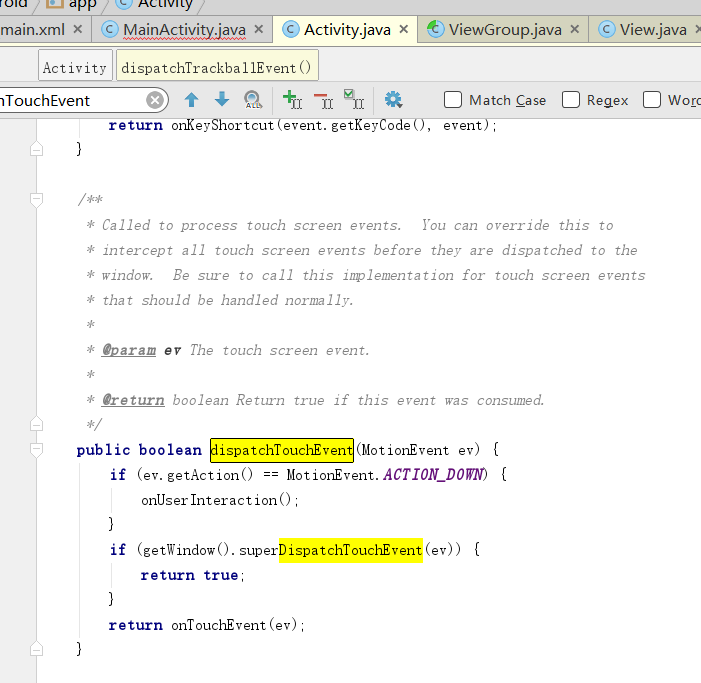

image-20191121171919269

跟进getWindow()

1
2
3
public Window getWindow() {
    return mWindow;
}
1
private Window mWindow;

发现返回的时Window对象

查看Window对象:

1
2
3
4
5
6
7
8
public abstract class Window {
    /** Flag for the "options panel" feature.  This is enabled by default. */
    public static final int FEATURE_OPTIONS_PANEL = 0;
    /** Flag for the "no title" feature, turning off the title at the top     *  of the screen. */
    public static final int FEATURE_NO_TITLE = 1;
    ...
   	...
}

发现这是一个抽象类, 所以在Activity中搜索window对象的具体创建部分的代码:

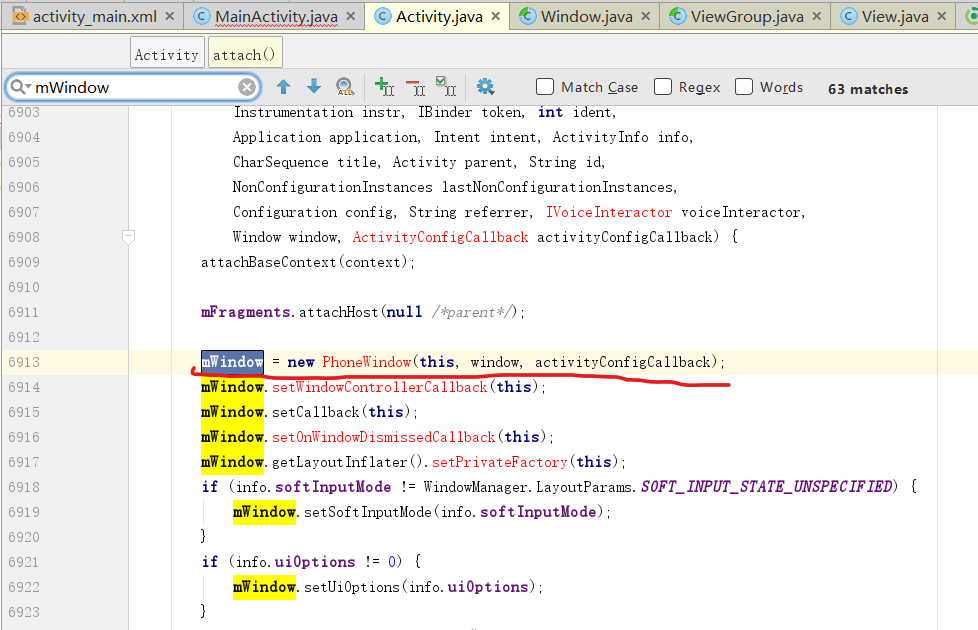

image-20191121172710521

很明显,PhoneWindow就是他的具体实现类，所以我们继续跟踪到PhoneWindow的superDispatchTouchEvent源码：

1
2
3
4
@Override
public boolean superDispatchTouchEvent(MotionEvent event) {
    return mDecor.superDispatchTouchEvent(event);
}

来康一下这个mDecor是个啥:

1
2
// This is the top-level view of the window, containing the window decor.
private DecorView mDecor;

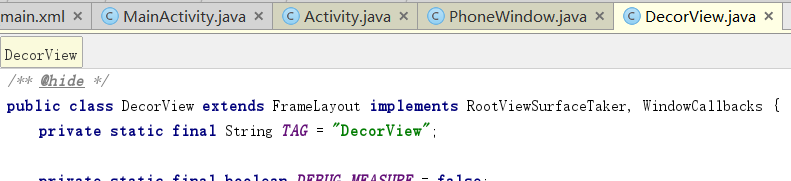

image-20191121192622469

这个view就是activity的顶级view，通过getWindow().getDecorView()可以获取到mDecor对象，他继承FrameLayout，并且我们经常在activity里面通过setContentView加入的view其实就是mDecor的子view。到这里，点击事件已经从activity传到View当中了，接下来要分析的就是顶级View把事件如何分发到各个子view中了。
继续了解mDecor.superDispatchTouchEvent(event)的具体实现：

1
2
3
public boolean superDispatchTouchEvent(MotionEvent event) {
	return super.dispatchTouchEvent(event);
}

看一下Decor的父类 也就是FrameLayout:

1
2
3
4
5
@RemoteView
public class FrameLayout extends ViewGroup {
    private static final int DEFAULT_CHILD_GRAVITY = Gravity.TOP | Gravity.START;
    ....
}

mDecor继承FrameLayout，所以他的super肯定是ViewGroup，super.dispatchTouchEvent(event)则调用 ViewGroup的dispatchTouchEvent方法，到此点击事件就传递到ViewGroup中。

继续查看ViewGroup的dispatchTouchEvent方法的源码：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
@Override
public boolean dispatchTouchEvent(MotionEvent ev) {
    if (mInputEventConsistencyVerifier != null) {
        mInputEventConsistencyVerifier.onTouchEvent(ev, 1);
    }

    // If the event targets the accessibility focused view and this is it, start
    // normal event dispatch. Maybe a descendant is what will handle the click.
    if (ev.isTargetAccessibilityFocus() && isAccessibilityFocusedViewOrHost()) {
        ev.setTargetAccessibilityFocus(false);
    }

    boolean handled = false;
    if (onFilterTouchEventForSecurity(ev)) {
        final int action = ev.getAction();
        final int actionMasked = action & MotionEvent.ACTION_MASK;

        // Handle an initial down.
        if (actionMasked == MotionEvent.ACTION_DOWN) {
            // Throw away all previous state when starting a new touch gesture.
            // The framework may have dropped the up or cancel event for the previous gesture
            // due to an app switch, ANR, or some other state change.
            cancelAndClearTouchTargets(ev);
            resetTouchState();
        }

        // Check for interception.
        final boolean intercepted;
        if (actionMasked == MotionEvent.ACTION_DOWN
            || mFirstTouchTarget != null) {
            final boolean disallowIntercept = (mGroupFlags & FLAG_DISALLOW_INTERCEPT) != 0;
            if (!disallowIntercept) {
                intercepted = onInterceptTouchEvent(ev);
                ev.setAction(action); // restore action in case it was changed
            } else {
                intercepted = false;
            }
        } else {
            // There are no touch targets and this action is not an initial down
            // so this view group continues to intercept touches.
            intercepted = true;
        }

        // If intercepted, start normal event dispatch. Also if there is already
        // a view that is handling the gesture, do normal event dispatch.
        if (intercepted || mFirstTouchTarget != null) {
            ev.setTargetAccessibilityFocus(false);
        }

        // Check for cancelation.
        final boolean canceled = resetCancelNextUpFlag(this)
            || actionMasked == MotionEvent.ACTION_CANCEL;

        // Update list of touch targets for pointer down, if needed.
        final boolean split = (mGroupFlags & FLAG_SPLIT_MOTION_EVENTS) != 0;
        TouchTarget newTouchTarget = null;
        boolean alreadyDispatchedToNewTouchTarget = false;
        if (!canceled && !intercepted) {

            // If the event is targeting accessiiblity focus we give it to the
            // view that has accessibility focus and if it does not handle it
            // we clear the flag and dispatch the event to all children as usual.
            // We are looking up the accessibility focused host to avoid keeping
            // state since these events are very rare.
            View childWithAccessibilityFocus = ev.isTargetAccessibilityFocus()
                ? findChildWithAccessibilityFocus() : null;

            if (actionMasked == MotionEvent.ACTION_DOWN
                || (split && actionMasked == MotionEvent.ACTION_POINTER_DOWN)
                || actionMasked == MotionEvent.ACTION_HOVER_MOVE) {
                final int actionIndex = ev.getActionIndex(); // always 0 for down
                final int idBitsToAssign = split ? 1 << ev.getPointerId(actionIndex)
                    : TouchTarget.ALL_POINTER_IDS;

                // Clean up earlier touch targets for this pointer id in case they
                // have become out of sync.
                removePointersFromTouchTargets(idBitsToAssign);

                final int childrenCount = mChildrenCount;
                if (newTouchTarget == null && childrenCount != 0) {
                    final float x = ev.getX(actionIndex);
                    final float y = ev.getY(actionIndex);
                    // Find a child that can receive the event.
                    // Scan children from front to back.
                    final ArrayList<View> preorderedList = buildTouchDispatchChildList();
                    final boolean customOrder = preorderedList == null
                        && isChildrenDrawingOrderEnabled();
                    final View[] children = mChildren;
                    for (int i = childrenCount - 1; i >= 0; i--) {
                        final int childIndex = getAndVerifyPreorderedIndex(
                            childrenCount, i, customOrder);
                        final View child = getAndVerifyPreorderedView(
                            preorderedList, children, childIndex);

                        // If there is a view that has accessibility focus we want it
                        // to get the event first and if not handled we will perform a
                        // normal dispatch. We may do a double iteration but this is
                        // safer given the timeframe.
                        if (childWithAccessibilityFocus != null) {
                            if (childWithAccessibilityFocus != child) {
                                continue;
                            }
                            childWithAccessibilityFocus = null;
                            i = childrenCount - 1;
                        }

                        if (!canViewReceivePointerEvents(child)
                            || !isTransformedTouchPointInView(x, y, child, null)) {
                            ev.setTargetAccessibilityFocus(false);
                            continue;
                        }

                        newTouchTarget = getTouchTarget(child);
                        if (newTouchTarget != null) {
                            // Child is already receiving touch within its bounds.
                            // Give it the new pointer in addition to the ones it is handling.
                            newTouchTarget.pointerIdBits |= idBitsToAssign;
                            break;
                        }

                        resetCancelNextUpFlag(child);
                        if (dispatchTransformedTouchEvent(ev, false, child, idBitsToAssign)) {
                            // Child wants to receive touch within its bounds.
                            mLastTouchDownTime = ev.getDownTime();
                            if (preorderedList != null) {
                                // childIndex points into presorted list, find original index
                                for (int j = 0; j < childrenCount; j++) {
                                    if (children[childIndex] == mChildren[j]) {
                                        mLastTouchDownIndex = j;
                                        break;
                                    }
                                }
                            } else {
                                mLastTouchDownIndex = childIndex;
                            }
                            mLastTouchDownX = ev.getX();
                            mLastTouchDownY = ev.getY();
                            newTouchTarget = addTouchTarget(child, idBitsToAssign);
                            alreadyDispatchedToNewTouchTarget = true;
                            break;
                        }

                        // The accessibility focus didn't handle the event, so clear
                        // the flag and do a normal dispatch to all children.
                        ev.setTargetAccessibilityFocus(false);
                    }
                    if (preorderedList != null) preorderedList.clear();
                }

                if (newTouchTarget == null && mFirstTouchTarget != null) {
                    // Did not find a child to receive the event.
                    // Assign the pointer to the least recently added target.
                    newTouchTarget = mFirstTouchTarget;
                    while (newTouchTarget.next != null) {
                        newTouchTarget = newTouchTarget.next;
                    }
                    newTouchTarget.pointerIdBits |= idBitsToAssign;
                }
            }
        }

        // Dispatch to touch targets.
        if (mFirstTouchTarget == null) {
            // No touch targets so treat this as an ordinary view.
            handled = dispatchTransformedTouchEvent(ev, canceled, null,
                                                    TouchTarget.ALL_POINTER_IDS);
        } else {
            // Dispatch to touch targets, excluding the new touch target if we already
            // dispatched to it.  Cancel touch targets if necessary.
            TouchTarget predecessor = null;
            TouchTarget target = mFirstTouchTarget;
            while (target != null) {
                final TouchTarget next = target.next;
                if (alreadyDispatchedToNewTouchTarget && target == newTouchTarget) {
                    handled = true;
                } else {
                    final boolean cancelChild = resetCancelNextUpFlag(target.child)
                        || intercepted;
                    if (dispatchTransformedTouchEvent(ev, cancelChild,
                                                      target.child, target.pointerIdBits)) {
                        handled = true;
                    }
                    if (cancelChild) {
                        if (predecessor == null) {
                            mFirstTouchTarget = next;
                        } else {
                            predecessor.next = next;
                        }
                        target.recycle();
                        target = next;
                        continue;
                    }
                }
                predecessor = target;
                target = next;
            }
        }

        // Update list of touch targets for pointer up or cancel, if needed.
        if (canceled
            || actionMasked == MotionEvent.ACTION_UP
            || actionMasked == MotionEvent.ACTION_HOVER_MOVE) {
            resetTouchState();
        } else if (split && actionMasked == MotionEvent.ACTION_POINTER_UP) {
            final int actionIndex = ev.getActionIndex();
            final int idBitsToRemove = 1 << ev.getPointerId(actionIndex);
            removePointersFromTouchTargets(idBitsToRemove);
        }
    }

    if (!handled && mInputEventConsistencyVerifier != null) {
        mInputEventConsistencyVerifier.onUnhandledEvent(ev, 1);
    }
    return handled;
}

看第19-25行 当点击事件是MotionEvent.ACTION_DOWN时，及手指刚刚触碰屏幕第一个触发的事件，里面调用了两个方法，cancelAndClearTouchTargets(ev)和resetTouchState();

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
/**
 * Cancels and clears all touch targets.
 */
private void cancelAndClearTouchTargets(MotionEvent event) {
    if (mFirstTouchTarget != null) {
        boolean syntheticEvent = false;
        if (event == null) {
            final long now = SystemClock.uptimeMillis();
            event = MotionEvent.obtain(now, now,
                    MotionEvent.ACTION_CANCEL, 0.0f, 0.0f, 0);
            event.setSource(InputDevice.SOURCE_TOUCHSCREEN);
            syntheticEvent = true;
        }

        for (TouchTarget target = mFirstTouchTarget; target != null; target = target.next) {
            resetCancelNextUpFlag(target.child);
            dispatchTransformedTouchEvent(event, true, target.child, target.pointerIdBits);
        }
        clearTouchTargets();

        if (syntheticEvent) {
            event.recycle();
        }
    }
}
1
2
3
4
5
6
7
8
9
/**
     * 重置所有状态准备新的循环
     */
    private void resetTouchState() {
        clearTouchTargets();
        resetCancelNextUpFlag(this);
        mGroupFlags &= ~FLAG_DISALLOW_INTERCEPT;	// FLAG_DISALLOW_INTERCEPT 用来阻止父类拦截点击事件
        mNestedScrollAxes = SCROLL_AXIS_NONE;
    }

29-44行 发现有判断父类是否拦截事件的处理代码:

一般两种情况下肯定会调用onInterceptTouchEvent方法：

1.点击事件为MotionEvent.ACTION_DOWN。

2.mFirstTouchTarget ！=null及子类处理点了击事件，因为mFirstTouchTarget 是在dispatchTransformedTouchEvent返回true的时候赋值的

反过来，点击事件MotionEvent.ACTION_DOWN被ViewGroup拦截，及mFirstTouchTarget =null，则后面move，up事件将不在调用onInterceptTouchEvent方法，因为mFirstTouchTarget =null，直接跳过if语句执行下面的else语句。

1
2
final boolean disallowIntercept = (mGroupFlags & FLAG_DISALLOW_INTERCEPT) != 0;//这个标志位通过requestDisallowInterceptTouchEvent(boolean disallowIntercept)可以控制

61-169行 如果没有被拦截也没有被取消:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
if (!canceled && !intercepted) {

   //如果事件的目标是accessiiblity焦点，那么我们会将其提供给具有易访问性焦点的视图，如果它不处理它的话
    //我们象往常一样把活动通知给所有的child。
    //我们正在查找可访问性集中的主机，以避免保持状态，因为这些事件非常罕见。
    View childWithAccessibilityFocus = ev.isTargetAccessibilityFocus()
        ? findChildWithAccessibilityFocus() : null;

    if (actionMasked == MotionEvent.ACTION_DOWN
        || (split && actionMasked == MotionEvent.ACTION_POINTER_DOWN)
        || actionMasked == MotionEvent.ACTION_HOVER_MOVE) {
        final int actionIndex = ev.getActionIndex(); // always 0 for down
        final int idBitsToAssign = split ? 1 << ev.getPointerId(actionIndex)
            : TouchTarget.ALL_POINTER_IDS;

        // 清理这个指针id的早期触摸目标，以防它们不同步。
        removePointersFromTouchTargets(idBitsToAssign);

        final int childrenCount = mChildrenCount;
        if (newTouchTarget == null && childrenCount != 0) {
            final float x = ev.getX(actionIndex);
            final float y = ev.getY(actionIndex);
            // Find a child that can receive the event.
            // Scan children from front to back.
            final ArrayList<View> preorderedList = buildTouchDispatchChildList();
            final boolean customOrder = preorderedList == null
                && isChildrenDrawingOrderEnabled();
            final View[] children = mChildren;
            for (int i = childrenCount - 1; i >= 0; i--) {
                final int childIndex = getAndVerifyPreorderedIndex(
                    childrenCount, i, customOrder);
                final View child = getAndVerifyPreorderedView(
                    preorderedList, children, childIndex);

                // 如果有一个具有可访问性焦点的视图，我们希望它首先获得事件，如果不处理，我们将执行正常的分派。我们可以进行两次迭代，但是考虑到时间范围，这样做更安全。
                if (childWithAccessibilityFocus != null) {
                    if (childWithAccessibilityFocus != child) {
                        continue;
                    }
                    childWithAccessibilityFocus = null;
                    i = childrenCount - 1;
                }

                if (!canViewReceivePointerEvents(child)
                    || !isTransformedTouchPointInView(x, y, child, null)) {
                    ev.setTargetAccessibilityFocus(false);
                    continue;
                }

                newTouchTarget = getTouchTarget(child);
                if (newTouchTarget != null) {
                    // Child is already receiving touch within its bounds.
                    // Give it the new pointer in addition to the ones it is handling.
                    newTouchTarget.pointerIdBits |= idBitsToAssign;
                    break;
                }

                resetCancelNextUpFlag(child);
                if (dispatchTransformedTouchEvent(ev, false, child, idBitsToAssign)) {
                    // Child wants to receive touch within its bounds.
                    mLastTouchDownTime = ev.getDownTime();
                    if (preorderedList != null) {
                        // childIndex points into presorted list, find original index
                        for (int j = 0; j < childrenCount; j++) {
                            if (children[childIndex] == mChildren[j]) {
                                mLastTouchDownIndex = j;
                                break;
                            }
                        }
                    } else {
                        mLastTouchDownIndex = childIndex;
                    }
                    mLastTouchDownX = ev.getX();
                    mLastTouchDownY = ev.getY();
                    newTouchTarget = addTouchTarget(child, idBitsToAssign);
                    alreadyDispatchedToNewTouchTarget = true;
                    break;
                }

                // The accessibility focus didn't handle the event, so clear
                // the flag and do a normal dispatch to all children.
                ev.setTargetAccessibilityFocus(false);
            }
            if (preorderedList != null) preorderedList.clear();
        }

        if (newTouchTarget == null && mFirstTouchTarget != null) {
            // 没有找到child来接收事件。
            // 将指针分配给最近添加的最少的目标
            newTouchTarget = mFirstTouchTarget;
            while (newTouchTarget.next != null) {
                newTouchTarget = newTouchTarget.next;
            }
            newTouchTarget.pointerIdBits |= idBitsToAssign;
        }
    }
}

172-210行，事件传递到子View if (mFirstTouchTarget == null)如果条件成立，则说明mFirstTouchTarget 为空，没有被赋值，因为mFirstTouchTarget 是在第146行被赋值，根据分析不执行这行代码的逻辑如下：dispatchTransformedTouchEvent返回false或者点击事件被拦截。总之，就是事件没有被子View处理。这个时候，就入到if语句中，发现就一个方法，如下：

1
2
3
4
5
// Dispatch to touch targets.
if (mFirstTouchTarget == null) {
    //没有接触的目标，所以把这当作一个普通 view.
    handled = dispatchTransformedTouchEvent(ev, canceled, null,            			TouchTarget.ALL_POINTER_IDS);
}

继续看下dispatchTransformedTouchEvent(ev, canceled, null,
TouchTarget.ALL_POINTER_IDS);方法的源码

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
  /**
   * 将运动事件转换为特定子视图的坐标空间
   * 过滤掉不相关的指针id，并在必要时覆盖其操作。
   * 如果child为null，则假设MotionEvent将被发送到这个ViewGroup。
   */
  private boolean dispatchTransformedTouchEvent(MotionEvent event, boolean cancel,
          View child, int desiredPointerIdBits) {
      final boolean handled;

      // 取消运动是一种特殊情况。我们不需要执行任何转换
      // 或过滤。重要的是行动，而不是内容。
      final int oldAction = event.getAction();
      if (cancel || oldAction == MotionEvent.ACTION_CANCEL) {
          event.setAction(MotionEvent.ACTION_CANCEL);
          if (child == null) {
              handled = super.dispatchTouchEvent(event);
          } else {
              handled = child.dispatchTouchEvent(event);
          }
          event.setAction(oldAction);
          return handled;
      }

      // 计算要传递的指针的数量。
      final int oldPointerIdBits = event.getPointerIdBits();
      final int newPointerIdBits = oldPointerIdBits & desiredPointerIdBits;

      // 如果由于某种原因，我们最终处于一种不一致的状态
//可能会产生一个没有指针的动作事件，然后删除该事件。
      if (newPointerIdBits == 0) {
          return false;
      }

      // 如果指针的数量相同，并且我们不需要执行任何复杂的不可逆转换，那么我们可以为这个分派重用motion事件，只要我们小心地还原我们所做的任何更改。否则我们需要复印一份。
      final MotionEvent transformedEvent;
      if (newPointerIdBits == oldPointerIdBits) {
          if (child == null || child.hasIdentityMatrix()) {
              if (child == null) {
                  handled = super.dispatchTouchEvent(event);
              } else {
                  final float offsetX = mScrollX - child.mLeft;
                  final float offsetY = mScrollY - child.mTop;
                  event.offsetLocation(offsetX, offsetY);

                  handled = child.dispatchTouchEvent(event);

                  event.offsetLocation(-offsetX, -offsetY);
              }
              return handled;
          }
          transformedEvent = MotionEvent.obtain(event);
      } else {
          transformedEvent = event.split(newPointerIdBits);
      }

      // 执行任何必要的转换和分派。
      if (child == null) {
          handled = super.dispatchTouchEvent(transformedEvent);
      } else {
          final float offsetX = mScrollX - child.mLeft;
          final float offsetY = mScrollY - child.mTop;
          transformedEvent.offsetLocation(offsetX, offsetY);
          if (! child.hasIdentityMatrix()) {
              transformedEvent.transform(child.getInverseMatrix());
          }

          handled = child.dispatchTouchEvent(transformedEvent);
      }

      // Done.
      transformedEvent.recycle();
      return handled;
  }

1.android的事件传递是先传递到父类，再到子类的。
2.ViewGroup中可以通过onInterceptTouchEvent方法对事件传递进行拦截，但是子View可以通过requestDisallowInterceptTouchEvent(boolean disallowIntercept)控制父类的拦截事件是否调用。
3.子View消耗掉点击事件后，父类onTouchEvent方法不会调用，子View不消耗点击事件，会传到父类onTouchEvent方法，父类onTouchEvent方法返回false，则最终传递到activity的onTouchEvent方法。
4.ViewGroup一旦调用onInterceptTouchEvent方法拦截点击事件后，本次点击序列事件则都交于该ViewGroup处理，并且onInterceptTouchEvent将不再执行( 见 2.mFirstTouchTarget ！=null及子类…)

5.当dispatchTouchEvent在进行事件分发的时候，只有前一个action返回true，才会触发下一个action.也就是说，子view 未消耗点击事件，及dispatchTouchEvent返回false，这样mFirstTouchTarget =null,则后续action直接由ViewGroup执行，不传递给子View
